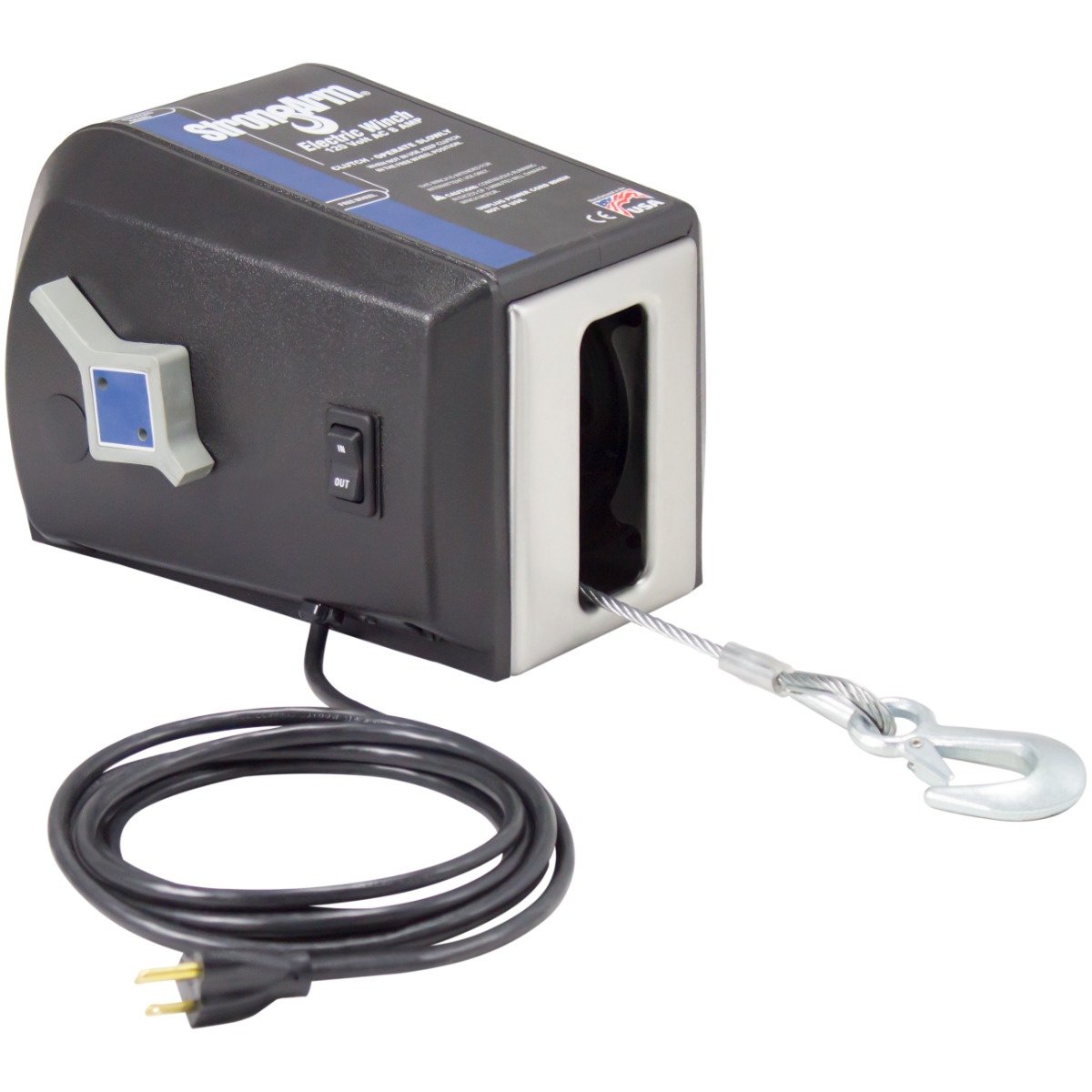

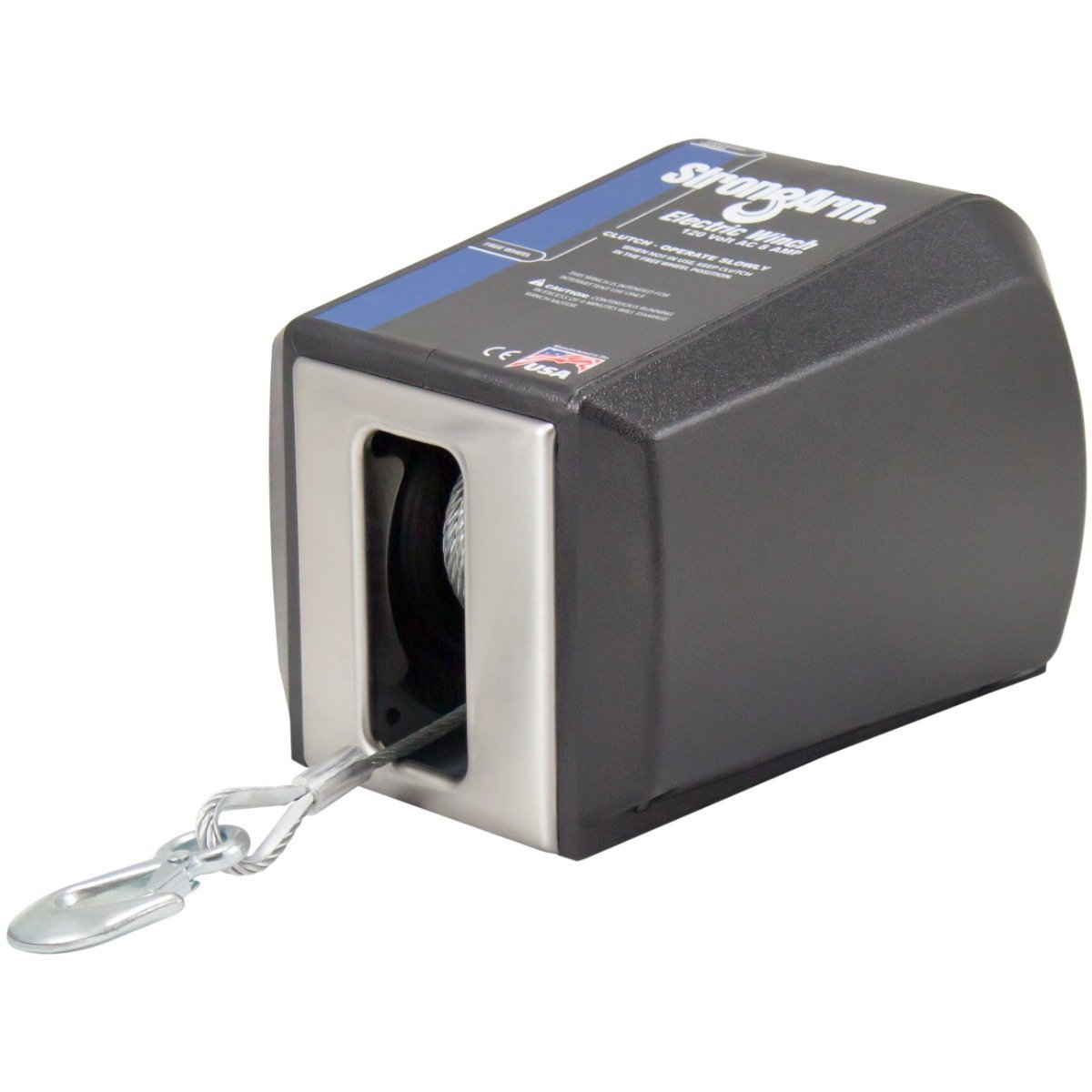

The versatile StrongArm®Electric Winches provide the load-moving muscle you need with the push of a button.

Features

• Power in, power out, controlled freewheeling clutch and automatic brake
• Comes loaded with 25' of 7/32 aircraft cable
• Emergency crank handle also included in case of power loss
• Electric winch gear train uses heat-treated sintered-iron gears for smooth, quiet operation
• Precision needle bearings are used in high-load areas for low friction and longer life
• Die-formed base is adapted for quick mounting.

For Applications with Access to AC Power: Boat Lifts, Boat Davits, Frame-Straightening Machines (to pull disabled vehicles up onto machine), Light Towers, Marine Railway Systems, Greenhouse Ventilation Systems, Aircraft Hangars (to pull small aircraft in and out), Opening/Closing large horizontal sliding doors, Dumb Waiters, General Material Handling Applications

What Makes StrongArm Electric Winches Different?

• Compact: Fits into tight spaces
• Safe: Cable is enclosed inside the cover (on open-reel models, fingers can get caught in cable as it’s reeled in, and any frayed strands can cause cuts)
• Longevity: The cable is protected from the elements to prevent wear & rusting

Unique Features

• Clutch Release: User can pay out load in neutral and still control it with the clutch mechanism
• Spur Gear System vs. Planetary Gears: A planetary gear system generates much more heat, and draws more amps from the power source. Because the motor and gears are attached directly to the spool, the heat build-up from running the winch transfers directly to the drum and cable. In contrast, the StrongArm® winch’s spur gear system is much more efficient, gives off less heat & draws fewer amps.

Additional Info:

• The 2700 lb. Winch has a 10', 3-wire grounded cord on 120 VAC model
• The 3000 lb. Winch (QC Part #91112) has a 25' positive battery wire and 8' ground wire on the DC model
• **3-minute maximum run time**
