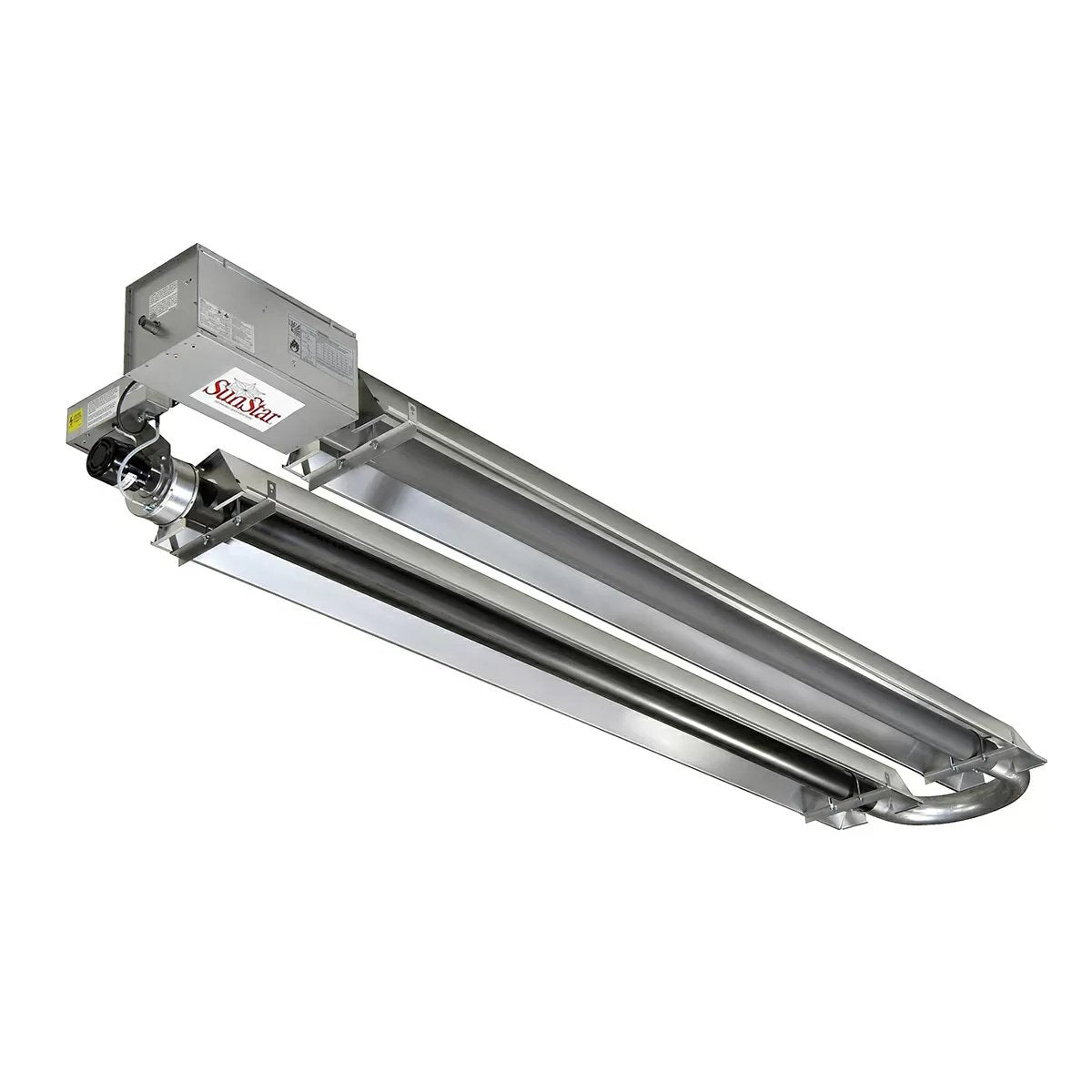

SunStar® Infrared Tube Heater - SIU Series - 175,000 BTU - 40' Tube
More about SunStar® Infrared Tube Heater - SIU Series - 175,000 BTU - 40' Tube
The perfect heater for hard-to-heat spaces like your warehouse or garage, the SunStar 175,000 BTU SIU Series Infrared Tube Heater with a 40' long tube provides both the fuel efficiency of radiant heat and the installation flexibility you need. This Tough Guy heater features an emitter tube perfect for high humidity/corrosive environments such as dairy barns, swimming pools, greenhouses, or water treatment plants.
The SIU Series of Infrared Tube Heaters from SunStar give you the same options you like from the SIS Series, but at a shorter length. The tube is bent in a U shape, so a 50' tube heater only measures 27'9" long.
Features
- Pull Through System
- CSA design certified
- Available in natural and propane gas
- Sidewall or through the roof venting
- Vented or indirect vented operation
- Includes 36″ stainless steel gas connector
Vacuum System
- Products of combustion are pulled through the combustion chamber for increased radiant efficiency and greater safety
- No draft hoods, totally enclosed combustion chamber
- Heavy-duty draft inducer assembly with permanently lubricated, totally enclosed and heavy duty ball bearing motor for maintenance-free operation
- 30 second per-purge period before ignition
- Diaphragm air switch for proof of venting before gas flow and ignition
Radiant Emitter Tube System
- 4” O. D. heat treated aluminized steel combustion chamber, 10’ length
- Standard highly emissive radiant tubes - 10’ lengths
- Aluminized steel radiant tubes
- 5-year limited manufacturer warranty on all tubes
- Suitable for horizontal or angle mounting up to 45°
- Up to 75 feet sidewall vent capability
Burner System
- Heavy-duty cast iron burner
- Reliable direct spark ignition system and 100% Gas Shut-Off Safety Control
- Burner inspection sight glass
- Step-opening redundant combination gas valve for quiet ignition & added safety
- Inside or outside air for combustion
- Up to 50 ft. outside combustion air capability
- Diagnostic Monitoring Light System
Reflector System
- Highly efficient aluminum reflectors
- Individual reflectors can be rotated up to 45° to direct heat where needed
| QC Part # | Vendor Part # | BTUs | Total Tube Length | Overall Length |
|---|---|---|---|---|
| 22665 | SIU50-20-TG | 50,000 | 20' | 12'9" |
| 22666 | SIU50-30-TG | 50,000 | 30' | 17'9" |
| 22667 | SIU75-20-TG | 75,000 | 20' | 12'9" |
| 22668 | SIU75-30-TG | 75,000 | 30' | 17'9" |
| 22669 | SIU100-30-TG | 100,000 | 30' | 17'9" |
| 22671 | SIU100-40-TG | 100,000 | 40' | 22'9" |
| 22672 | SIU125-30-TG | 125,000 | 30' | 17'9" |
| 22673 | SIU125-40-TG | 125,000 | 40' | 22'9" |
| 22677 | SIU150-40-TG | 150,000 | 40' | 22'9" |
| 22678 | SIU150-50-TG | 150,000 | 50' | 27'9" |
| 22679 | SIU175-40-TG | 175,000 | 40' | 22'9" |
| 22680 | SIU175-50-TG | 175,000 | 50' | 27'9" |
Applications: Manufacturing Plants, Warehouses, Auto Dealerships, Aircraft Hangars, Loading Docks, Weld Shops, Fire Stations, Gymnasiums, Garages, Machine Shops, Tennis Courts, Maintenance Shops, Farm Buildings, Truck Service Areas, Auto Body Shops, and MORE!
Requirements
| Gas Type | Burner Pressure | Supply Pressure | Voltage | Amps | Ignition Type | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| Natural Gas | 3.5" W.C. | 5" W.C. | 14" W.C. | 120 VAC, 60 Hz | 2.4 | Direct Spark |
| Liquid Propane | 10" W.C. | 11" W.C. | 14" W.C. | 120 VAC, 60 Hz | 2.4 | Direct Spark |
Minimum Mounting Heights
| Model | Height @ Horizontal | Height @ 45° Angle |
|---|---|---|
| SIU 50 | 11' | 10' |
| SIU 75 | 13' | 12' |
| SIU 100 | 14' | 13' |
| SIU 125 | 14' | 13' |
| SIU 150 | 15' | 14' |
| SIU 175 | 16' | 15' |
SIU Clearances to Combustibles
| Model | Side | Ceiling* | Below | End | 45° Front | 45° Rear |
|---|---|---|---|---|---|---|
| SIU 50 | 24" | 6" | 40" | 15" | 40" | 12" |
| SIU 75 | 24" | 6" | 60" | 15" | 52" | 12" |
| SIU 100 | 28" | 6" | 76"** | 15" | 60" | 12" |
| SIU 125 | 32" | 6" | 82"** | 20" | 66" | 12" |
| SIU 150 | 36" | 6" | 87"** | 20" | 70" | 12" |
| SIU 175 | 42" | 6" | 93"** | 20" | 77" | 12" |
