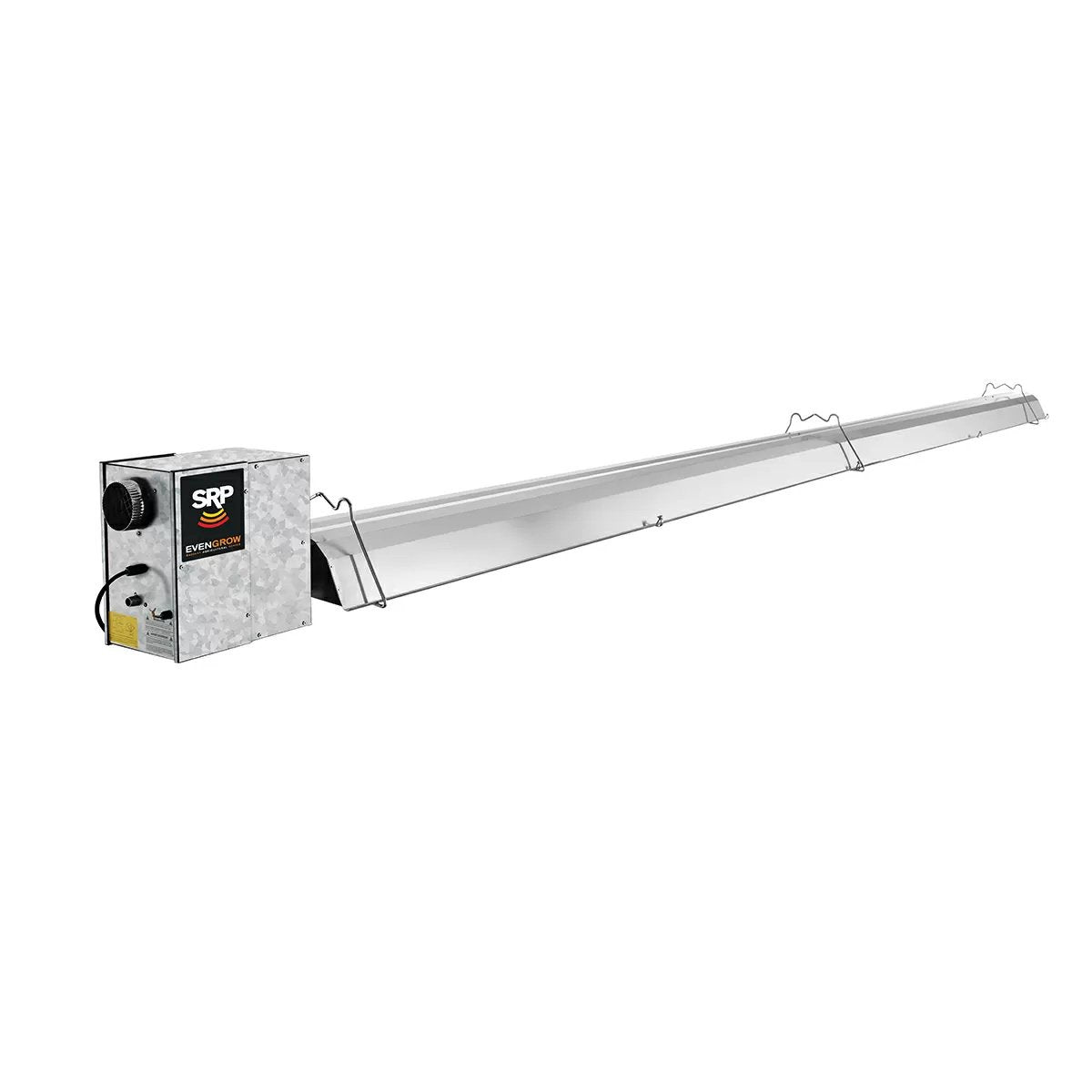

Built with high-efficiency features for the agricultural industry, Superior Radiant Products AUX Infrared Tube Heaters offer special anti-corrosion construction for harsh environments. These 150,000 BTU heaters have a 100% efficient reflector.

Features

• Waterproof housing for best reliability
• Potted ignition modules
• Nickel-plated “Jet Stream” burner cup
• 100% efficient reflector mounted horizontally for minimal convective heat loss and ensuring maximum energy is delivered to the floor
• Optional tilted reflector or energy efficient side reflectors for wall mounting
• Sealed maintenance-free blower motor
• Low clearances above for installation close to ceilings
• Use with optional “Flapper” to prevent cold air infiltration when the heater is not running

Specifications

• 120 VAC, 60 Hz
• 1 amp
• 60" grounded plug connector
• 1/2" NPT gas connection
• 4" combustion air & flue tube diameter
• 5.0" w.c. Natural Gas/11.5" w.c. Liquid Propane minimum gas inlet

Standard Included Equipment

• Sealed burner housing assembly comes with potted module
• HT aluminized tubing with gasket
• Combustion air inlet collar
• Turbulators when required
• All tube, reflectors, couplings, end caps & hanging accessories per specified length

Clearance to Combustibles

• Straight/Horizontal: 2" from top; 25" from sides; 58" from bottom
• Straight/45° Tilt: 4" from top; 4-46" from sides; 67" from bottom
• U-Tube Horizontal: 2" from top, 25" from sides; 59" from bottom
• *Other layout configurations are approved
• *See installation manual for complete information
