Protect Your Crew From Harmful Toxic Gases

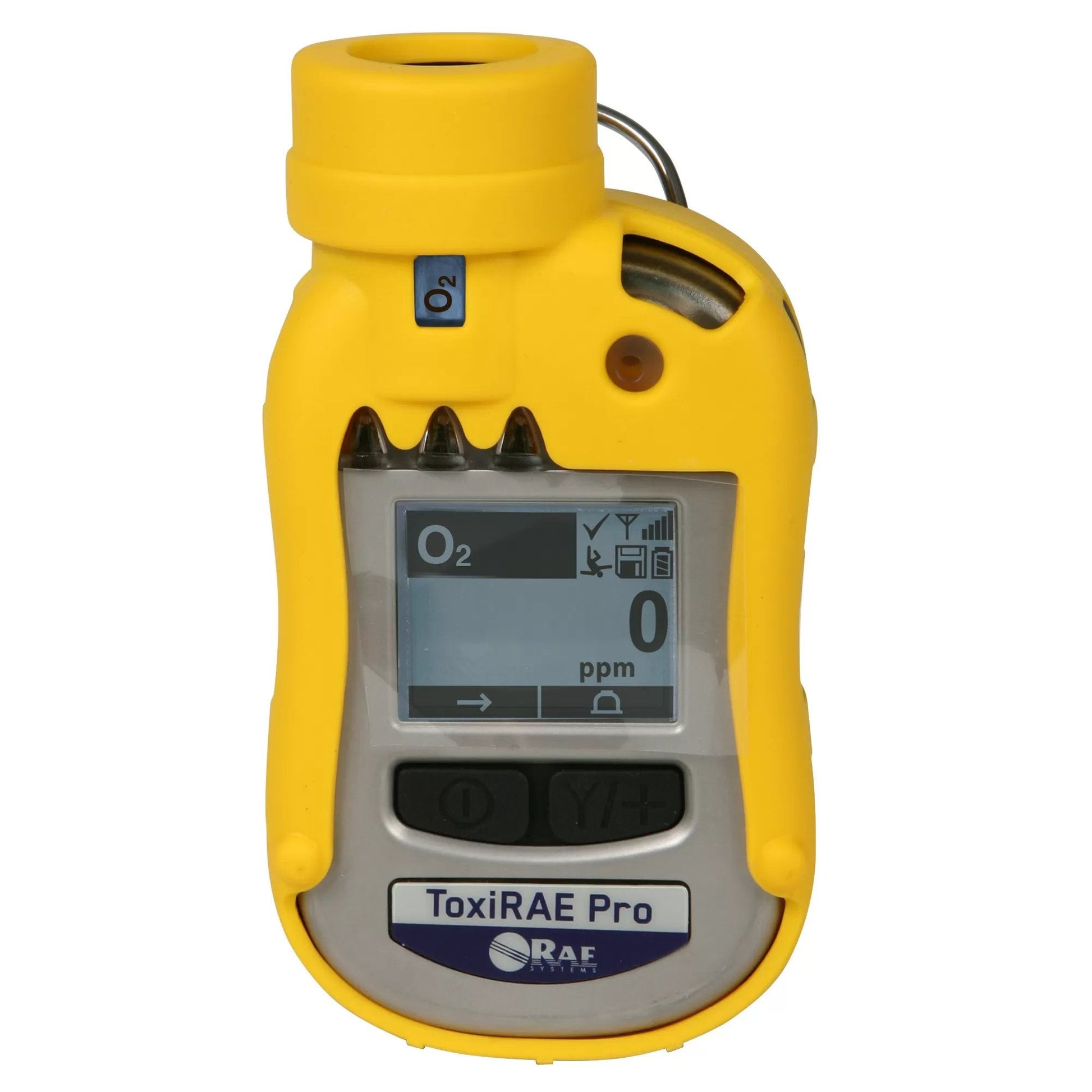

The ToxiRAE Pro Oxygen O₂ Detector is a compact, reliable and ready-to-use personal monitor for toxic gases and oxygen. It provides unmistakable five-way local and remote alarms if a threat is detected or a man is down. The ToxiRAE Pro provides safety professionals wireless remote access to real-time instrument readings and alarm status for better visibility and faster incident response. Plus, it offers the flexibility of easily swappable sensors to monitor for different gases in different situations.

Features:

• Personal wireless monitor for toxic gases and oxygen
• Swap out sensors for different gases
• Intelligent sensors store calibration data even when swapped out
• Unmistakable 5-way local and remote wireless notification of alarm conditions
• Largest display in class
• Water-, dust-, and shock-resistant
• Built-in man-down alarm
• Wireless access to real-time instrument readings and alarm status from any location
• Continuous datalogging
• Easy-to-use
• Reliable, rugged, and intrinsically safe
• Wireless elevates safety to the next level
• Man Down Alarm with real-time remote wireless notification
• Easy to maintain with replaceable sensor, filter and Li-ion battery

Applications:

• Agriculture
• Chemical
• Fire Service/HazMat
• Food & Beverage
• Oil & Gas
• Pharmaceutical
• Pulp & Paper
• Steel Manufacturing
• Water & Wastewater Industries

Instrument Specifications:

• Size: 4.6" H x 2.4" W x 1.2" D
• Weight: 7.76 oz
• Battery: Rechargeable Li-ion battery
  • Operating Time: >30 hrs (normal operation, non-wireless)
  • Recharge Time: <4 hrs through charging cradle
• Display: Graphical LCD display with white LED backlighting (activated when monitor is in alarm or with a button press)
• Display Readout
  • Real-time reading of gas concentrations in parts per million (ppm) or mg/m³; battery status; data logging on/off; wireless on/off; and reception quality
  • STEL, TWA, and peak values
• Keypad: 2 buttons for operation and programming
• Alarm Modes
  • Wireless remote alarm notification; audible (95 dB @ 30 cm), vibration, visible alarm (flashing bright red LEDs), and on-screen indication of alarm conditions
  • Man Down Alarm with pre-alarm and real-time remote wireless notification
• Datalogging:
  • Continuous datalogging with a 3-month capacity (at 1-min intervals)
  • User configurable datalogging interval (from 1-3,600 seconds)
• Operating Temperature: -4° F to 131° F
• Dust & Water Resistance: IP-65 rating for dust and water ingress protection (validated by an independent laboratory)
• Manufacturer's Warranty
  • 2-years on non-consumable components and CO, H₂S, and O₂ sensors
  • 1-year on all other sensors, battery, and other consumable parts

Sensor Specifications:

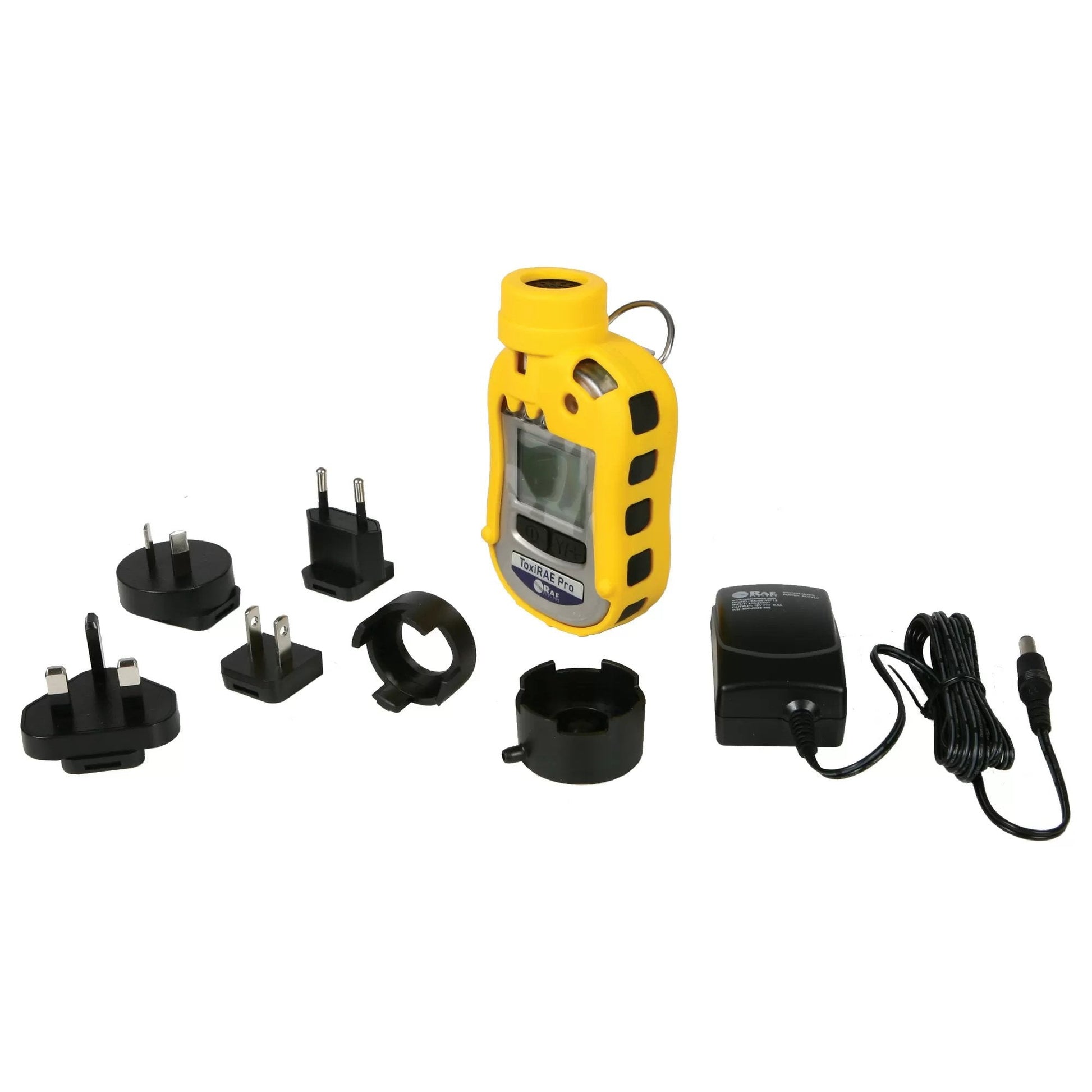

ToxiRAE Pro Comes With:

• ToxiRAE Pro Monitor with Oxygen Sensor, Alligator Clip, Protective Rubber Boot, and Rechargeable Battery installed

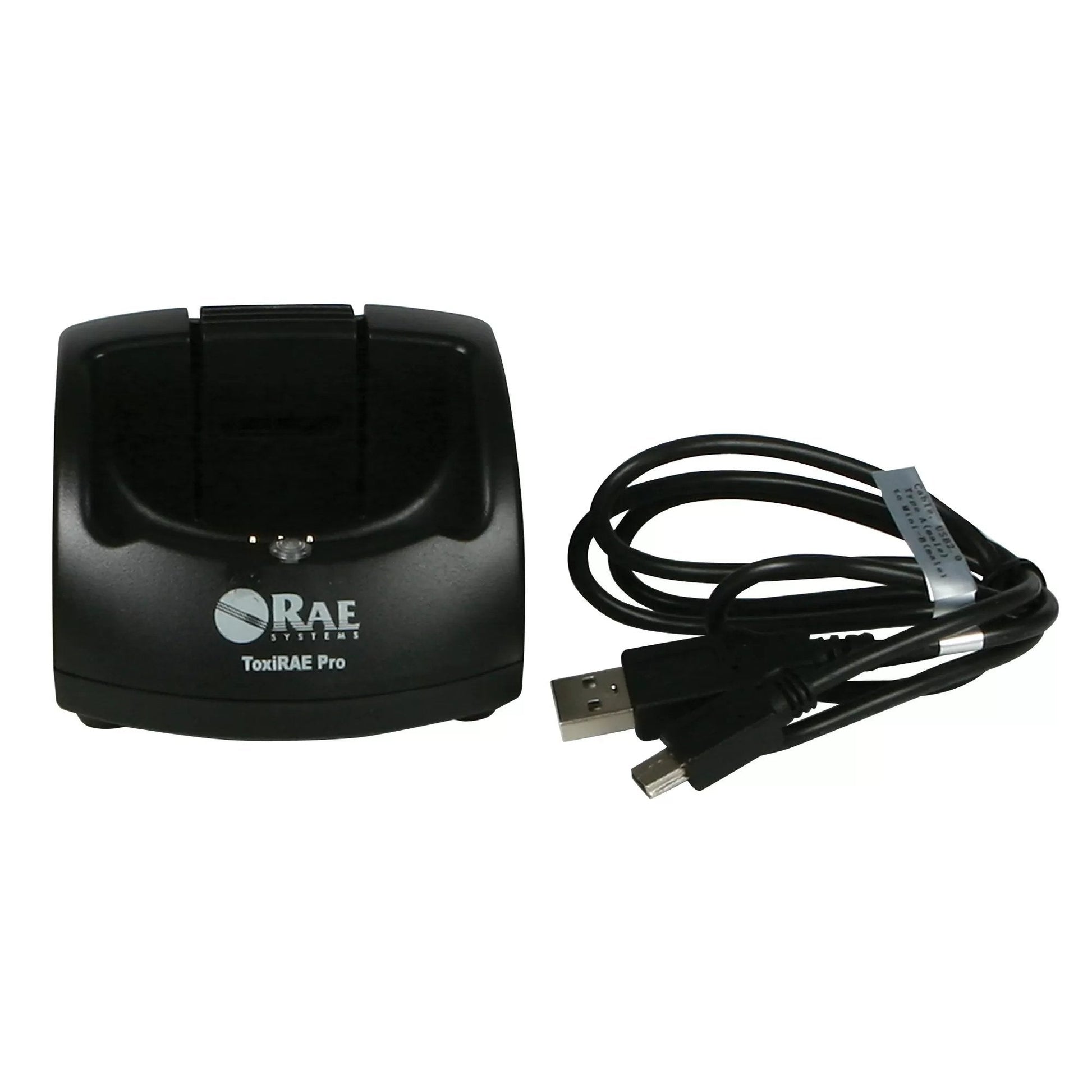

• Charging and PC Communication Cradle
• PC Communication Cable
• AC Adapter (100-240V, 50/60 Hz AC to 12V DC)
• Calibration Adapters
• Quick Start Guide
• CD with documentation
• ProRAE Studio II Software for PC-based instrument configuration and data management
• Calibration Card, Quality Certificate, and Warranty/Registration Card
