Vostermans MfFlex Flex Motors
More about Vostermans MfFlex Flex Motors

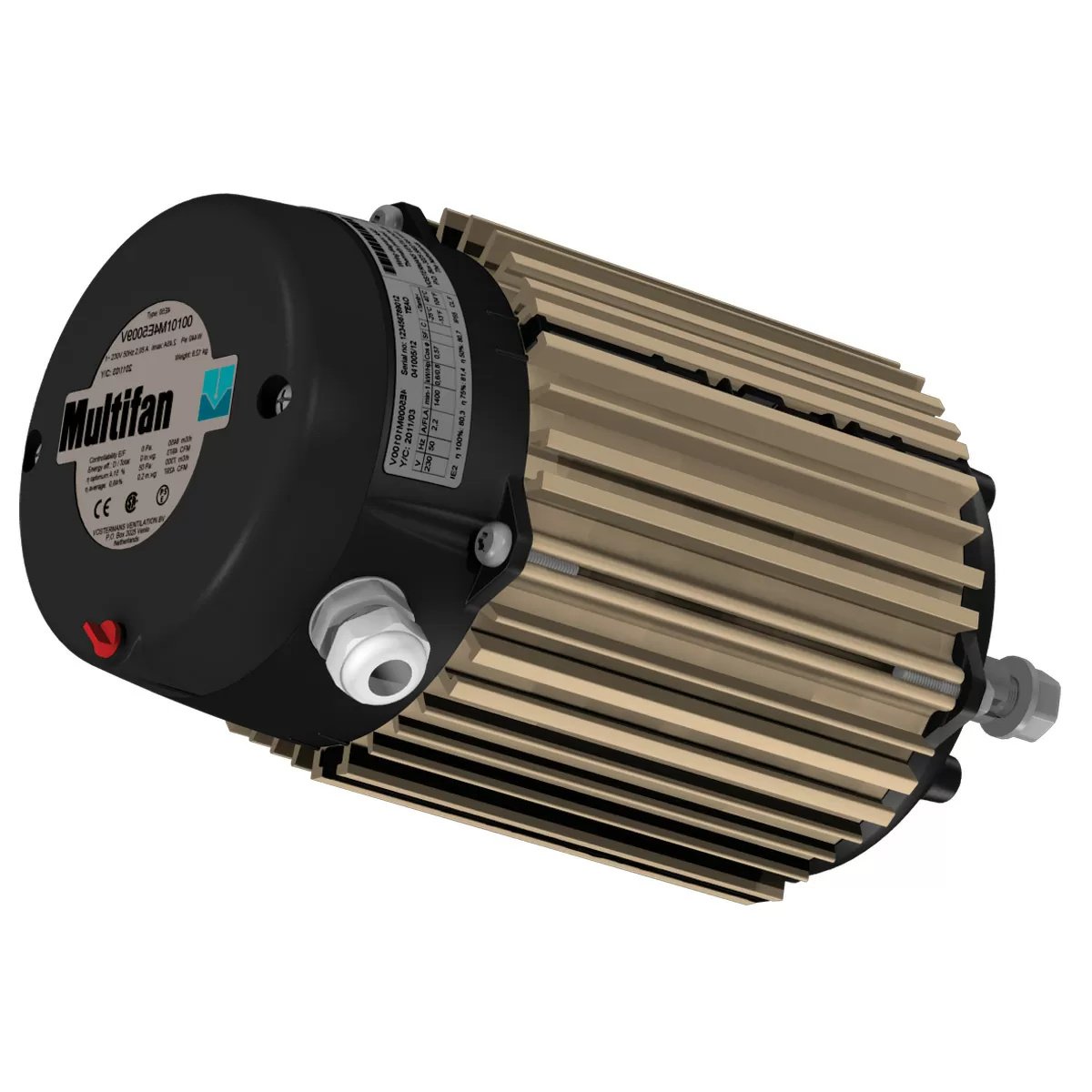

An excellent replacement motor for your swine, poultry, or dairy building fans, these Vostermans Mf-Flex Totally Enclosed Air-Over (TEAO) flex motors have an aluminum extrusion profile. The motors meet CE standards and fulfill the international specifications of approved institutes for CSA and UL.
Dust and water-resistant, these motors are produced in accordance with the IP55 standard, the materials used meet the standard of insulation class F with resistance to temperatures up to 311? F. For proper cooling, the motors have to be mounted in the airstream.
When purchasing a Flex motor for the first time, please order a replacement impeller as well.
Motors
| QC Part # | Manufacturer Part # | HP | Replaces | RPM | Amps |
|---|---|---|---|---|---|
| 11184-220 | FM0190M6G0000 | 1/3 | 8"-24" Fans | 1,600 | 2.0 |
| 11184-110 | FM0207M6G0000 | 1/3 | 8"-24" Fans | 1,600 | 3.8 |
| 11185-220 | FM0129M6G0000 | 1/2 | 22"-24" Fans | 1,000 | 3.2 |
| 11185-110 | FM0225M6G0000 | 1/2 | 22"-24" Fans | 1,000 | 6.7 |
| 11186-220 | FM0080M7G8000 | 1/2 | 36" Fans | 800 | 3.0 |
| 11186-110 | FM0094M7G0030 | 1/2 | 36" Fans | 800 | 6.3 |
Note: This motor will not work with Portacool Evaporative Coolers or other "swamp" coolers. Call us at 888.433.5275 for help choosing a motor for these coolers.
